MASINA PNEUMATICA DE TAIAT TEVI MODEL 1WTTC-1000

The 1WTTC-1000 greatly reduces cutting time by utilizing the special 1 point self-centering  cutter wheel design and works with 3/4”, thru 1-1/4” O.D. tubes (after changing cutter body wheels and pilots). The tool does not create any chips during the cutting process!

MASINA PNEUMATICA DE TAIAT TEVI MODEL 2WTTC-1500

The 2WTTC-1500 greatly reduces cutting time by utilizing the special 2 point self-centering cutter wheel design and works with 5/8”, thru 1-1/4” O.D. tubes. The tool does not create any chips during the cutting process!

MASINA PNEUMATICA DE TAIAT TEVI MODEL 3WTTC-2000

The 3WTTC-2000 greatly reduces cutting time by utilizing the special 3 point self-centering cutter wheel design and works with 2”, thru 4” O.D. tubes. The tool does not create any chips during the cutting process!

MASINA PNEUMATICA DE TAIAT TEVI MODEL 3WTTC-3000

The 3WTTC-3000 greatly reduces cutting time by utilizing the special 3 point self-centering cutter wheel design and works with 2-1/2”, thru 5” O.D. tubes. The tool does not create any chips during the cutting process! “Real life” tube to tube cycle time is approximately 30 seconds, giving unmatched productivity.

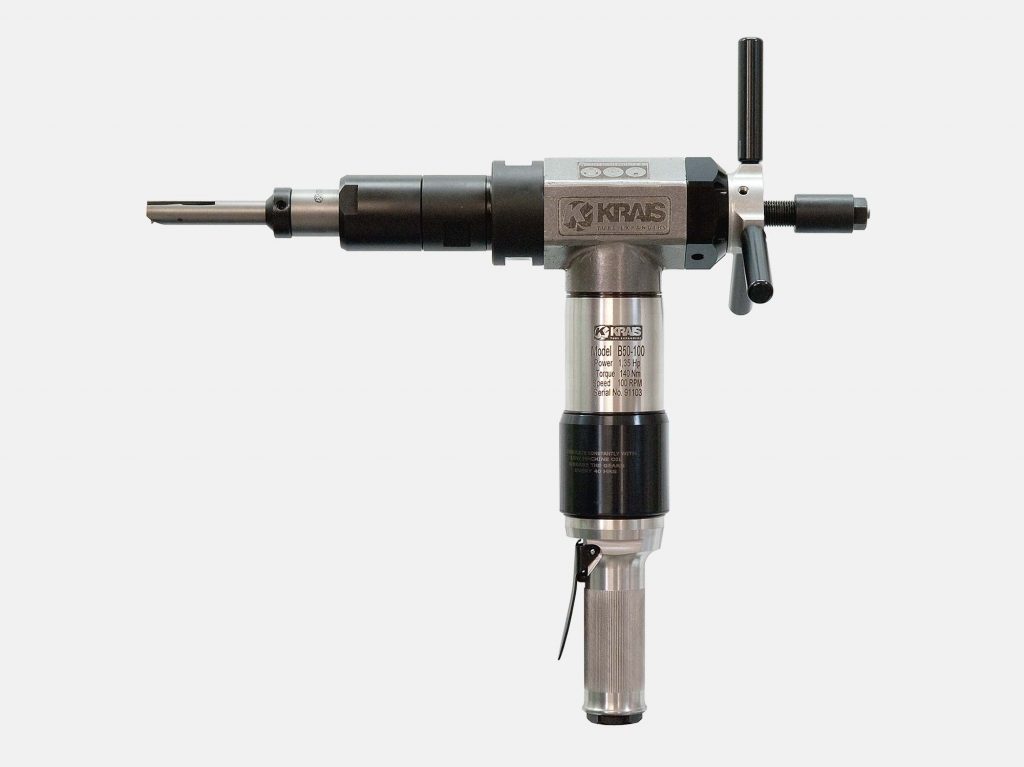

MASINA PNEUMATICA DE TAIAT TEVI MODEL MINI-CUT 100

KRAIS MiniCut 100 is light and portable tube cutter for cutting alloy and ferrous tubes up to 1-1/4” OD. The machine allows for quick and efficient cutting even heavy wall tubing (up to 10 BWG).

The MiniCut 100 tool is equipped with star wheel feed for smooth, positive power transmission to the cutting bit.

Tool is available with electric drive – all parameters stays the same.

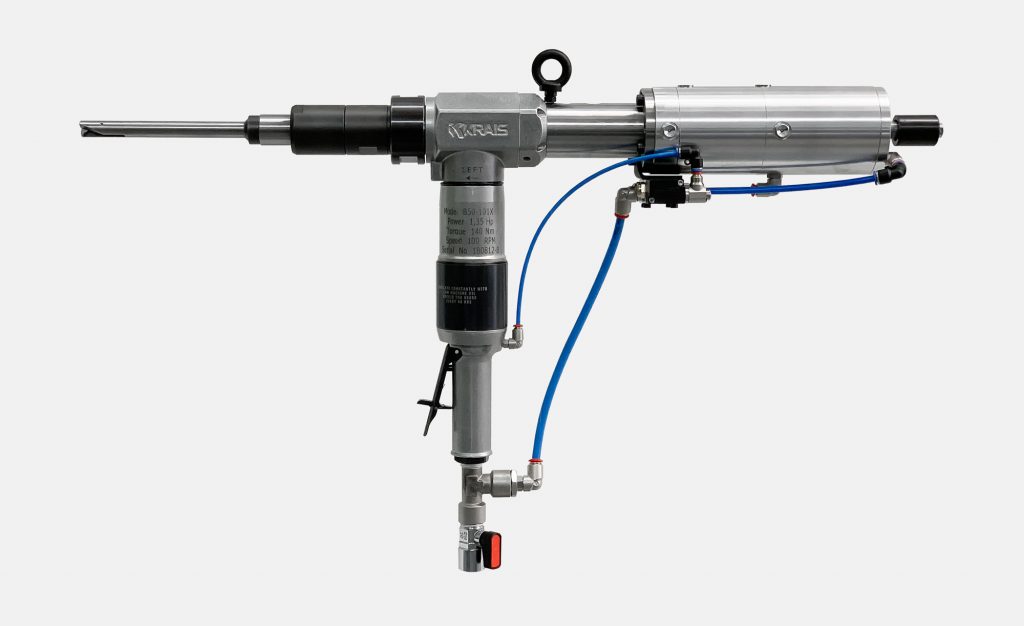

MASINA PNEUMATICA DE TAIAT TEVI MODEL MINI-CUT 101AF

MiniCut 101AF tube cutting machine with Automatic Feed. Alloy and ferrous tubes up to 1-1/4” with heavy wall up to 10 BWG can be cut quickly, consistently efficiently and effortlessly within 15-40 second depending on diameter and wall thickness. The MiniCut 101AF tool is equipped with pneumatic/hydraulic automatic feed for positive power transmission to the cutting bit.

DISPOZITIV MANUAL DE TAIAT TEVI MODEL MWTTC

MWTTC – Manual Wheel Type Tube Cutter, designed to cut or partially cut the tubes in the center support sheet of condensers, similar in design to those manufactured by Trane, Carrier and JCI.

The MWTTC has adjustable wheel travel that accurately controls the amount of tube wall the operator can cut. Typically 98% or less is easily set up. The MWTTC comes as standard with 120” reach (3m). On request we can manufacture up to 196” reach (5m). We recommend our MCP-100 Manual Collet Puller as a companion tool to the MWTTC, this allows quick and trouble free stub and tube extraction.

DISPOZITIV MANUAL DE TAIAT TEVI MODEL PTTC

PTTC tube cutters (available form 1/2” up to 4” O.D.) offer features to make it the most versatile cutter available. The cutter blade depth can be adjusted to allow the tube to be cut through. The cutter blades are made out of the HSS what assure long life time (when used with proper cutting speed) A single blade is used in cutters from PTTC-82 to PTTC-254.

DISPOZITIV MANUAL DE TAIAT TEVI MODEL ORTC

These tools have been designed for cutting both ferrous and non-ferrous tubes, that are commonly found, in heat exchangers, boilers and condensers. Our standard tool is adjustable from 1”-6” (25 mm-155 mm). Longer reach tools are available in 10” (254 mm) increments. The tool is designed to be used with a hand or ratchet wrench only. Impact wrenches should never be used with these tools. The Cutting of the tube is based on the eccentric principle, where the cutter bit moves out to the tube wall as the cutter is rotated. Continued clockwise rotation will puncture and cut the tube in one revolution. Simply rotating the tool counterclockwise closes the bit and the tool can be removed from the tube.
